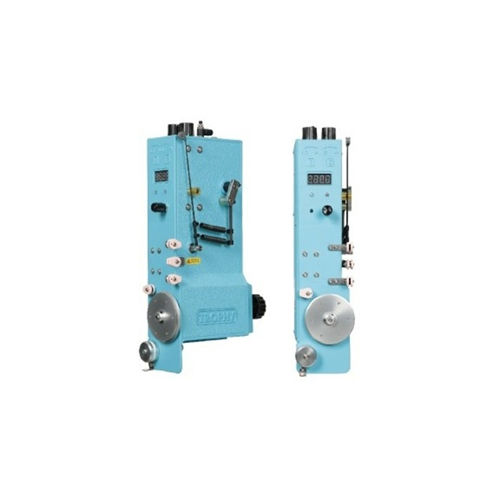

Hi-speed Closed Loop Servo Tensioner Ncf Series

Get a Price/Quote

Product Details:

Product Type Servo Tensioner
General Use Industrial
Material ABS
Type Wire Winding Machine
Power Source Electric
Winding Speed 15 Meter/second (m/s)
Drive Type Electric
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Hi-speed Closed Loop Servo Tensioner Ncf Series Price And Quantity

Minimum Order Quantity 1 Piece

Hi-speed Closed Loop Servo Tensioner Ncf Series Product Specifications

Voltage 24-48 Volt (v)
Type Wire Winding Machine
Power Source Electric
Feature Low Energy Consumption
General Use Industrial
Material ABS
Winding Speed 15 Meter/second (m/s)
Color White
Drive Type Electric
Product Type Servo Tensioner

Hi-speed Closed Loop Servo Tensioner Ncf Series Trade Information

Supply Ability 1 Piece Per Day
Delivery Time 2-3 Days

Product Description

Servo Tensioner NCF series

HI-SPEED CLOSED LOOP SERVO TENSIONER NCF SERIES

digital stabilization system;2.support RS485;3.Closed-loop constant tension control4.Real-time tension measurement and display

This series features high speed closed loop servo tensioners with a maximum wire-feeding speed of 15 meters per second. Its high-speed/high torque DC servo motor and built-in Adaptive Speed Control Software provides fast response to rapid changes in coil winding speed and a wider tension range for high-speed precision winding. Suitable for high speed precision winding, improve winding efficiency and coil quality.

Advantages :

Please choose the tension rod and spring suitable for the tension value to use;
Do not touch the transmission and rotating parts and block the tension rod when using the tensioner;
Do not let the tensioner drop or be damaged by strong impact;
Adjust the tension value according to the need, and select the appropriate model specification.

REQUIERMENTS :

Power Supply : DC 24V /48V

BASIC SPECIFICATIONS OF NCF SERIES

Model	Tension Range (G)	Suitable Wire Size (Mm)	Max Wire Travel Speed(M/S)	Rated Current (A)	Power Supply
NCF-400	2-400	0.02-0.25	15	3.5	DC24V
NCF-800	30-800	0.06-0.40	15	5.5	DC48V
NCF1500	80-1500	0.10-0.50	15	7.5	DC48V
